Purpose:

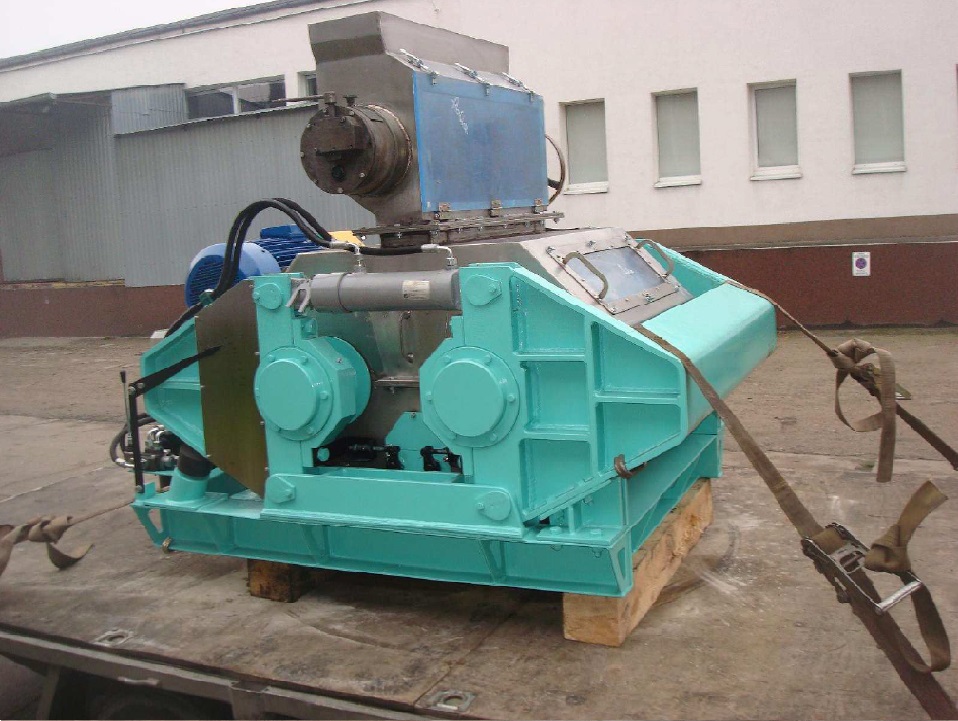

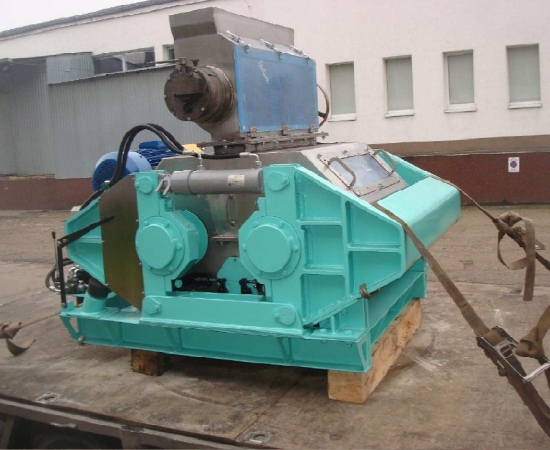

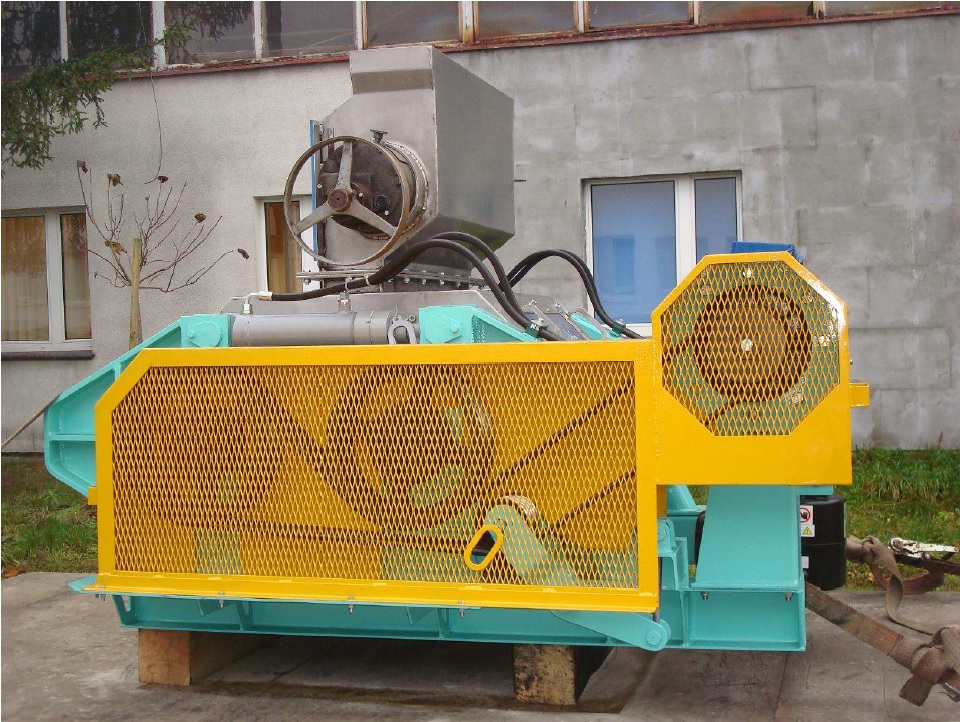

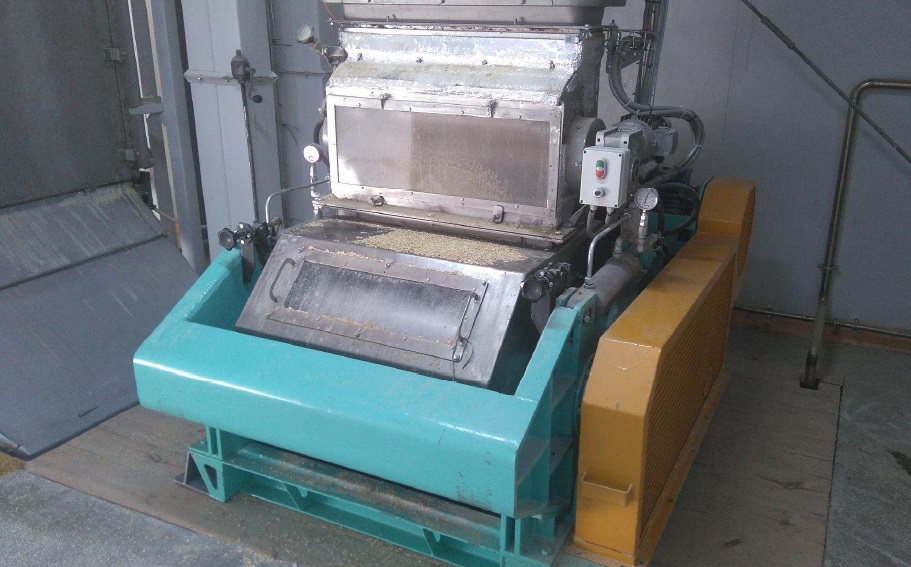

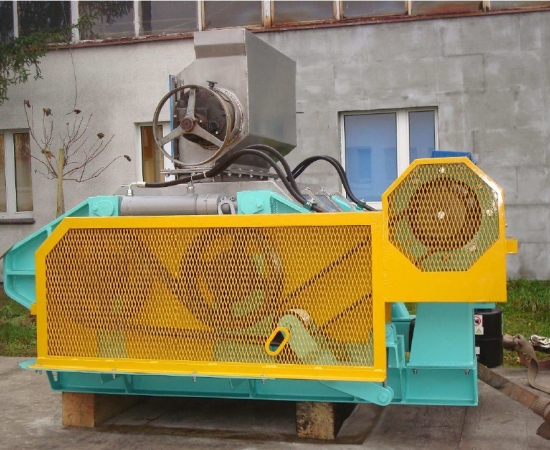

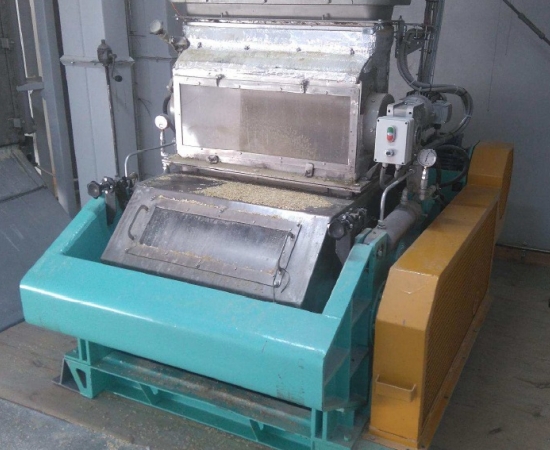

The two-roller crusher type Ø500x800 is designed for grinding the oversize screened after the raw material granulation processes. Feeding the raw material to the crusher and collecting it can be carried out by conveyors or chutes. The feed should be free of metallic inclusions. It is recommended to install a magnetic separator at the material inlet to the crusher.

 Technical parameters:

- the diameter of the rollers  - Ø500 mm
- the length of the rollers  - 800 mm
- input graining  - do 50 mm
- gap adjustment range  - 5 ÷ 30 mm
- performance  - do 40 t/h, depended on the set aperture.
- installed power  - 2 x 15 kW
- weight of the crusher ~ 2.600 kg

- crusher dimensions:
- length:  ~ 2.400 mm
- width:  ~ 1.400 mm
- height: ~ 1.250 mm
- the height of the charge: ~ 930 mm

Input granulation and gap adjustment range to be agreed.
