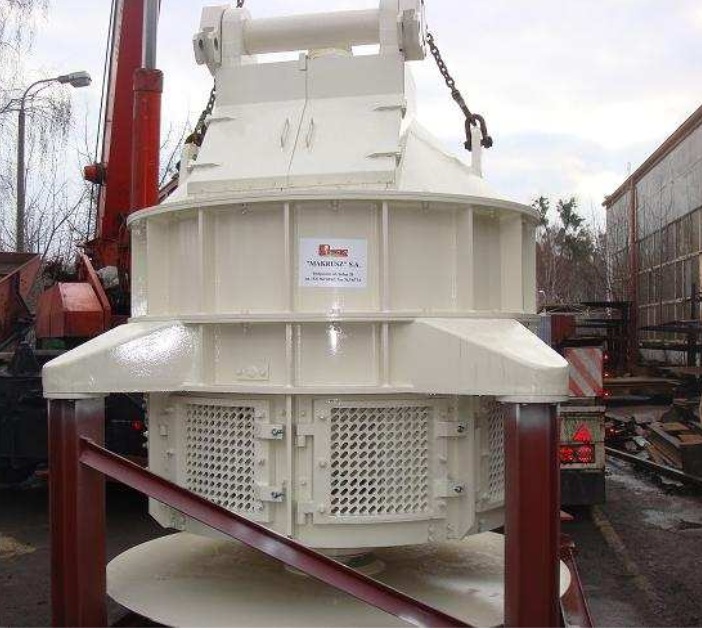

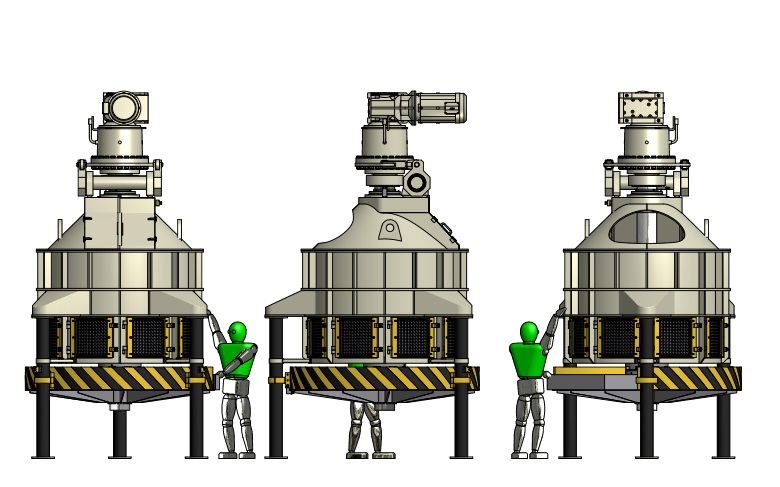

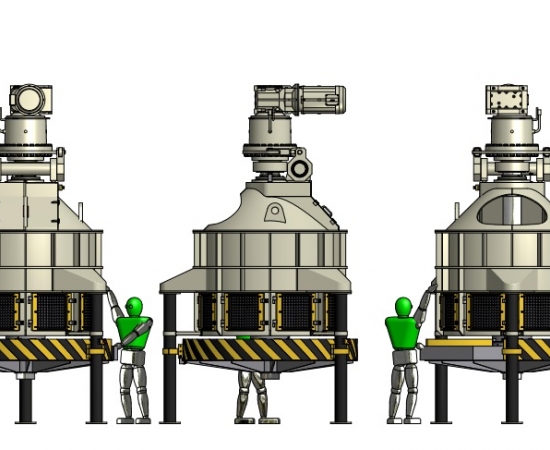

The PS 1.9 type abrade machine feeder is used to prepare the mass from pre-ground raw materials, free from stones, roots and mechanical impurities. The effect of the abrade machine is a mixed and largely fluffed mass, therefore the machine is used in the production line before roller presses.
PS-type abrade machines are used to prepare the mass of pre-crushed raw material, free from stones and mechanical impurities. The effect of the machine abrade is a mixed and highly fluffed mass, therefore these machines are used in the production line with vacuum presses and roller presses. The offered abrade machines are equipped with a weight filling sensor: min./max. Before drying the mass in the basket, the abrade machines are equipped with special covers attached to the sieves and with a cover attached from the top.
The raw material fed to the abrade machine should have a humidity of 15 to 30%, it should also be pre-crushed and fed continuously.

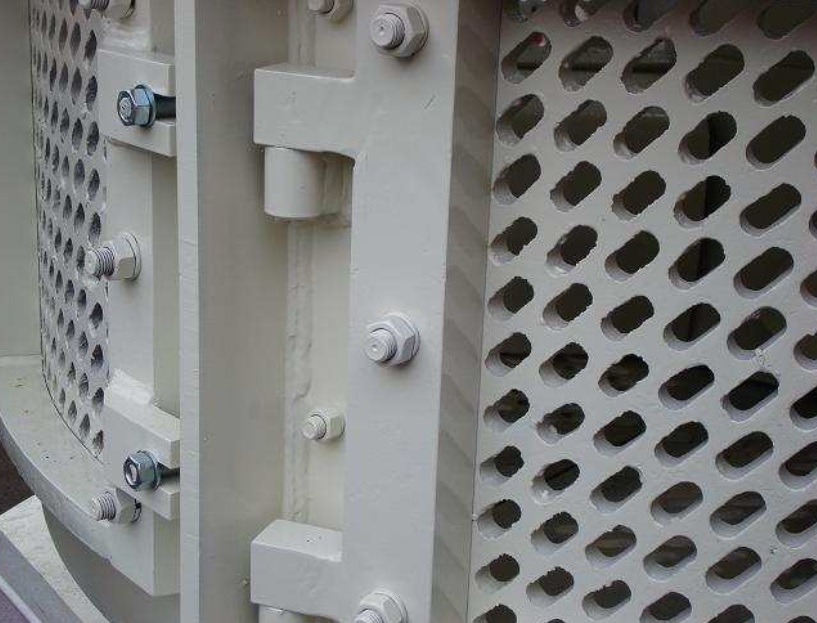

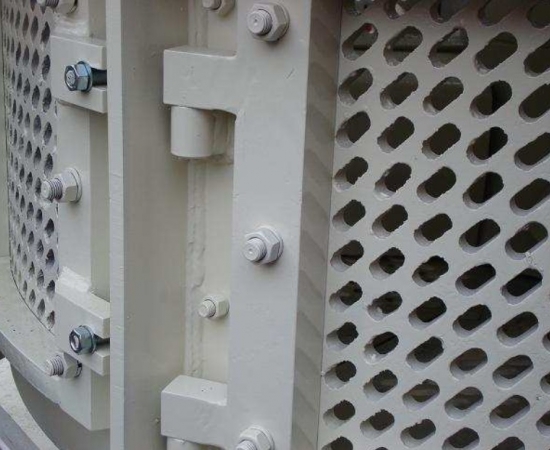

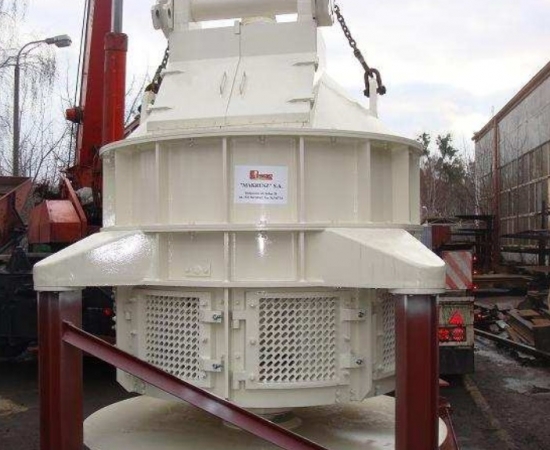

The screens are rubbed through the material and forced through the holes. The raw material, rubbed and pressed in this way, falls onto a rotary collecting plate powered by a separate electric motor. The collecting plate transfers the sawn raw material to the scraper, which collects it outside the machine to further devices located in the technological line.

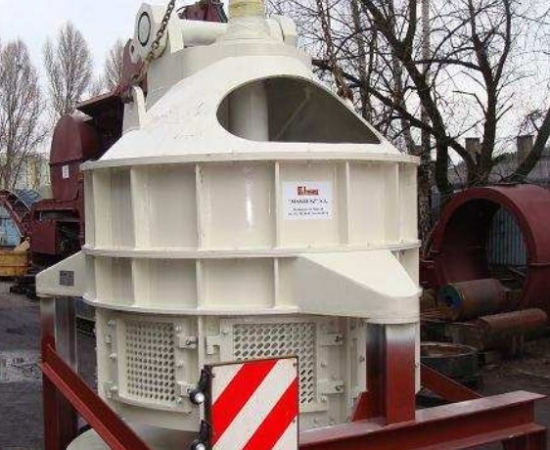

This abrade machine has a modern design characterized by a drive from the top, two wiping surfaces, i.e. on the circumference and on the bottom, which guarantees much higher efficiency. All the sawn material is collected by the collecting plate driven directly from the main shaft. It has a modern structure with the main shaft supported in two bearings.
Technical specifications
Basket dimensions:
- inner diameter - 1900 mm,
Capacities:
- basket without an extension ~ 2,6 m3,
- basket with an extension ~ 4,1 m3,
Performance:
- up to 40 t/h, (depending on the size of the mesh in the sieves used,
Mesh screens:
- Ø20 mm, or others to be agreed,
Turnover
- scraper ~ 4,2 rpm,
- collecting plate ~ 5,7 rpm,
Electric motors power:
- scraper drive - 45 kW, - a modern solution of the scraper drive based on an integrated planetary gear was used. Location of the drive from the top, which protects the drive against flooding with water from the rubbed material.
Total weight ~ 12.500 kg.
TECHNICAL DESCRIPTION:
General description of the structure:
The basic elements of the abrade machine feeder are the body, frame, scraper, screen plates and a modern scraper drive based on an integrated planetary gear.
The abrade machine feeder is equipped with a weight filling sensor: min./max. A modern solution, the so-called planetary gear mounted on its shaft from the top. Drive mounted to the structure of the abrade machine. The entire drive is specially protected against dusting.
A description of the action:
The raw material fed to the abrade machine should have a humidity of 15 to 30%, it should also be pre-crushed and fed continuously. The stream of raw material should be directed so that it falls to the center of the drum, and not to the tube sheets. The material from the inside is distributed by a cross and is picked up by the rotating scraper legs and directed towards the sieves. The screens are rubbed through the material and forced through the holes. The raw material, rubbed and pressed in this way, falls onto a rotary collecting plate powered by a separate electric motor. The collecting plate transfers the sawn raw material to the scraper, which collects it outside the machine to further devices located in the technological line.
